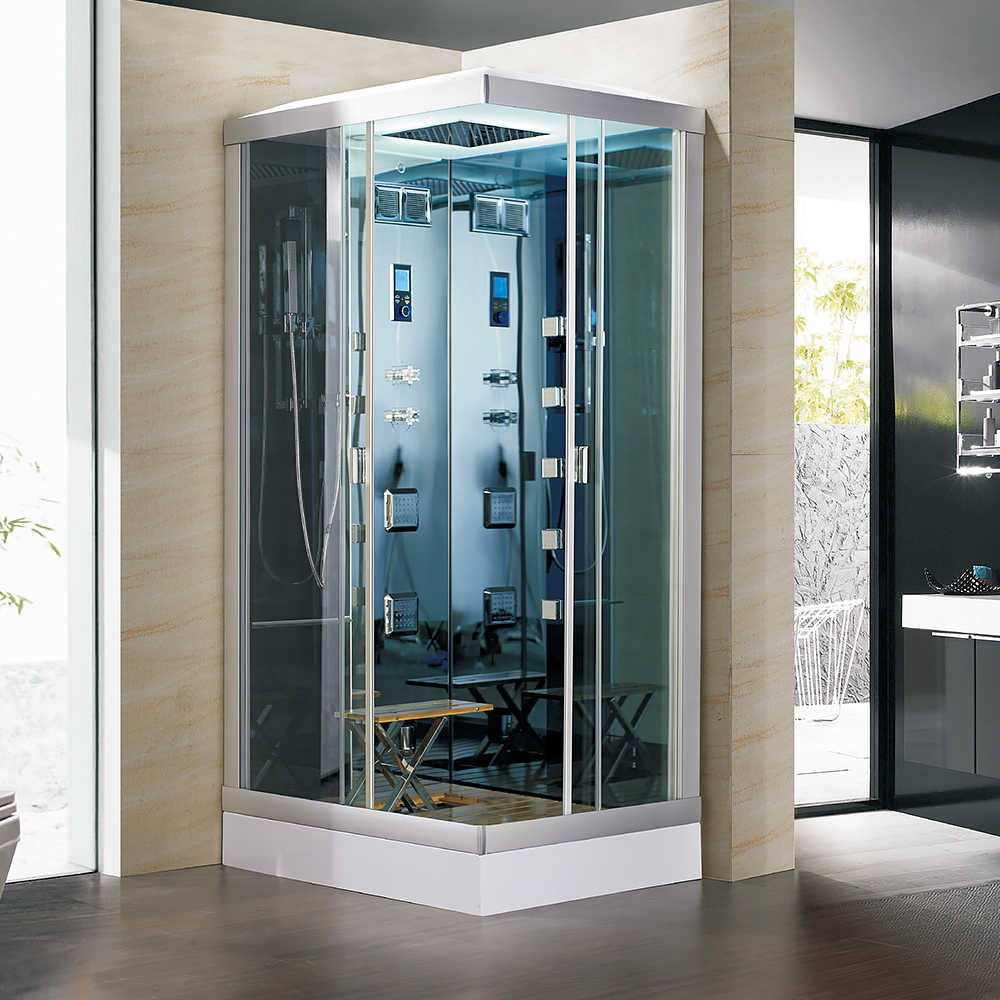

Shower cabin HX-9816

Dimensions

1100 x 850 x 2250 mm




see drawings

Specifications

Frame
Aluminum frame in matt silver
Front Glass
6mm tempered clear glass
Back Glass Curtain-wall glass
Functional Panel Stainless steel
Shower Top Transparent PMMA&ABS
Shower Tray

PMMA&ABS

Radio Yes
Shelf 1 layer glass shelf

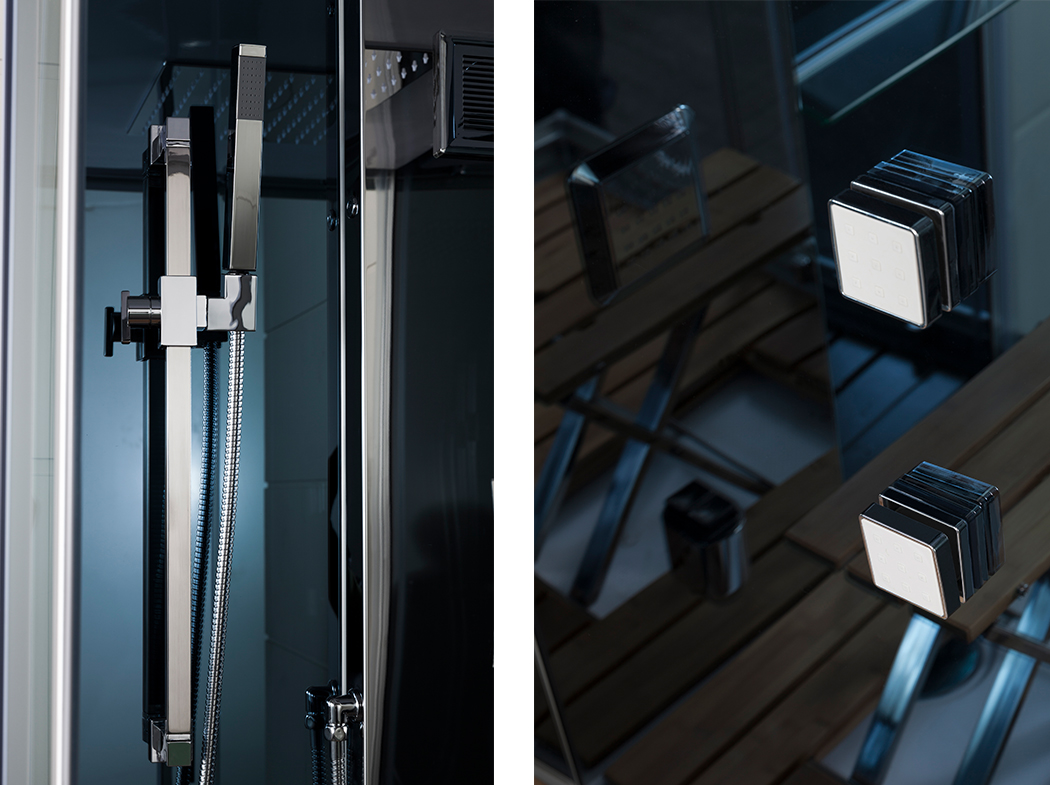

Hand Shower
Yes
Head Shower
Luxurious
Massage Jet
2 big +5 medium
Ventilation Fan Yes

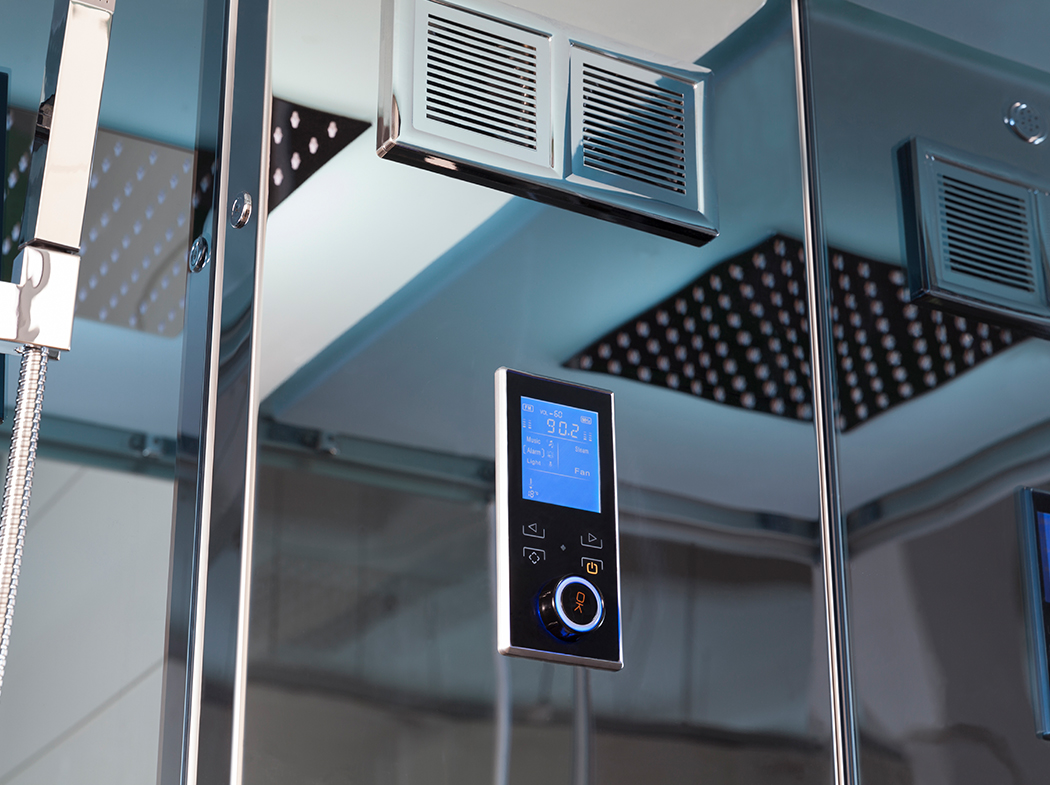

Computer Panel Touch screen
Faucet Crystal handle mixer
Top lamp Yes

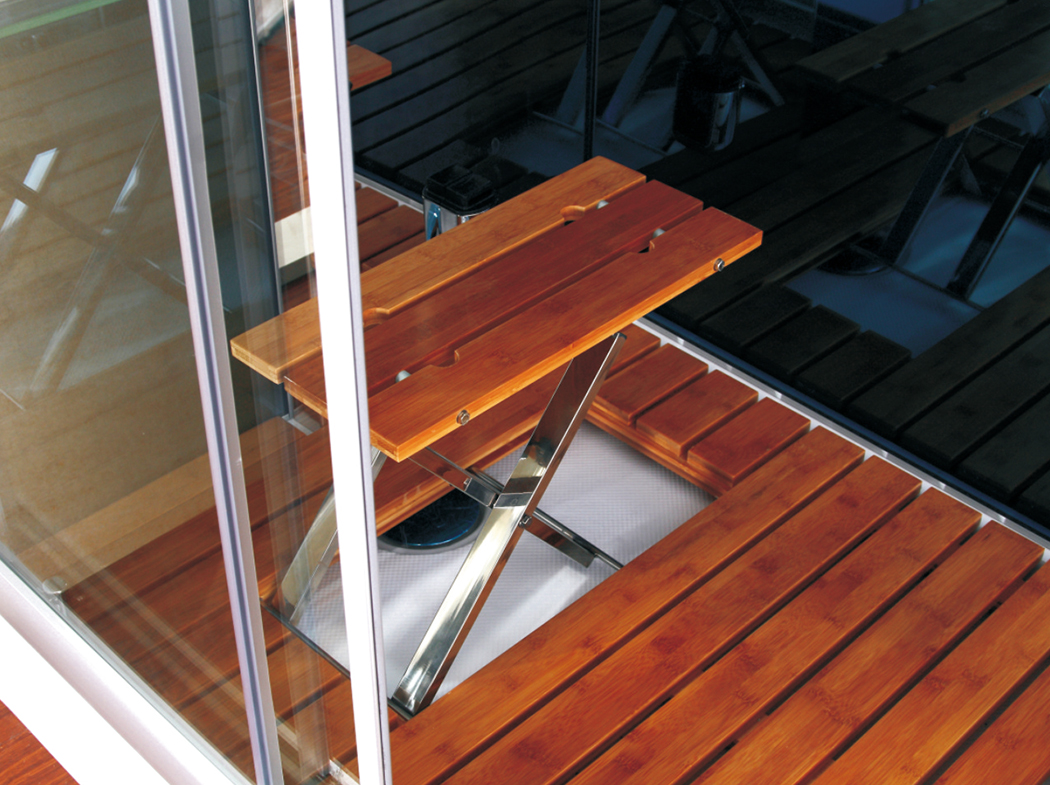

Floor Bamboo floor with automatic lift seat
Handle Yes
Optional
Aluminum frame in black
Steam

Image Gallery

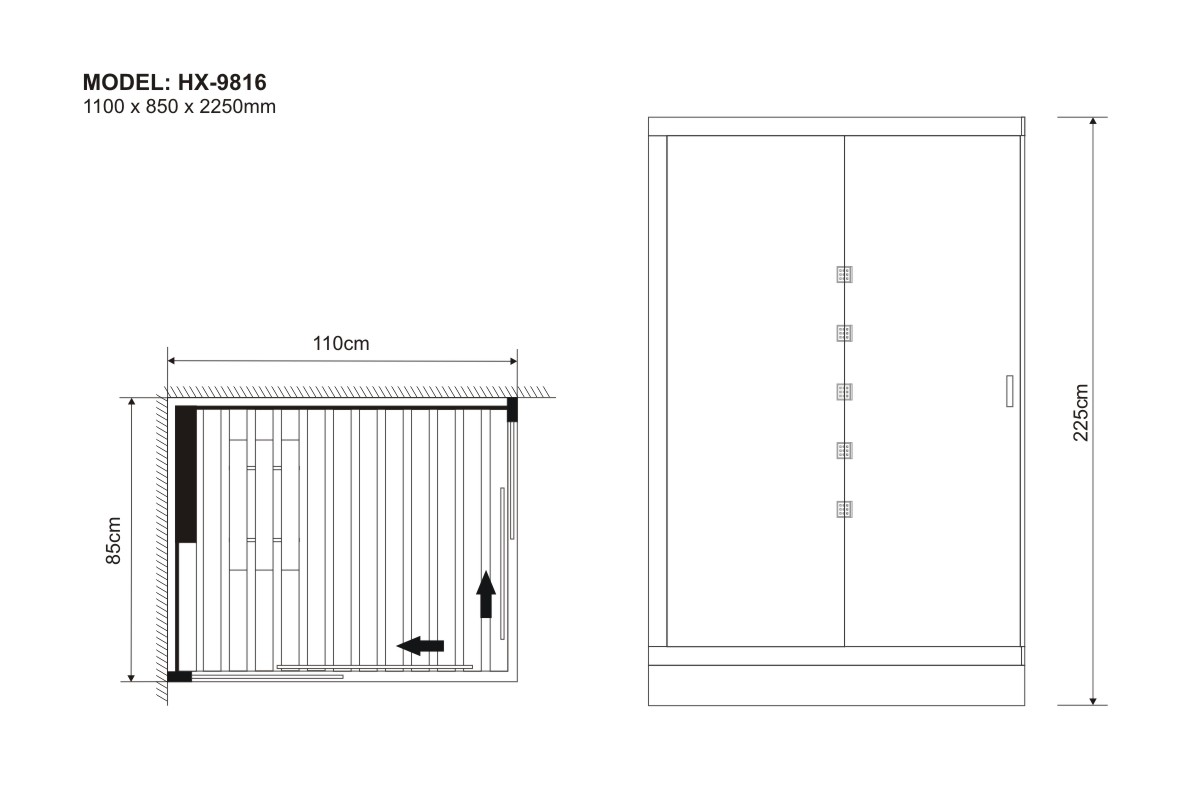

Dimension Drawings

If not otherwise stated, all dimensions are in mm. All dimensions and weights listed on this page are subject to manufacturing and measuring tolerances. Final specifications, based on customers requirements, will be confirmed during the ordering process. Only the original product can fully represent the detail quality and finishing quality of  Our products. Due to monitor settings and environment the precived colors may slighty vary from the orignal product. Our  may make product modifications and enhancements. Specifications may change without notice.
